[100%] ''EYE'' OEM GREASE GUN 500cc grease pump -Easy grease filling ( 09EGG0500 )     Technical data:-     Grease gun connection, pressure-side: G 1/8'' Capacity (cm³): 500 Refilling options: 400 g grease cartridge, DIN 1284, or bulk or Glling system facility Diameter of grease piston (mm) ...Read more

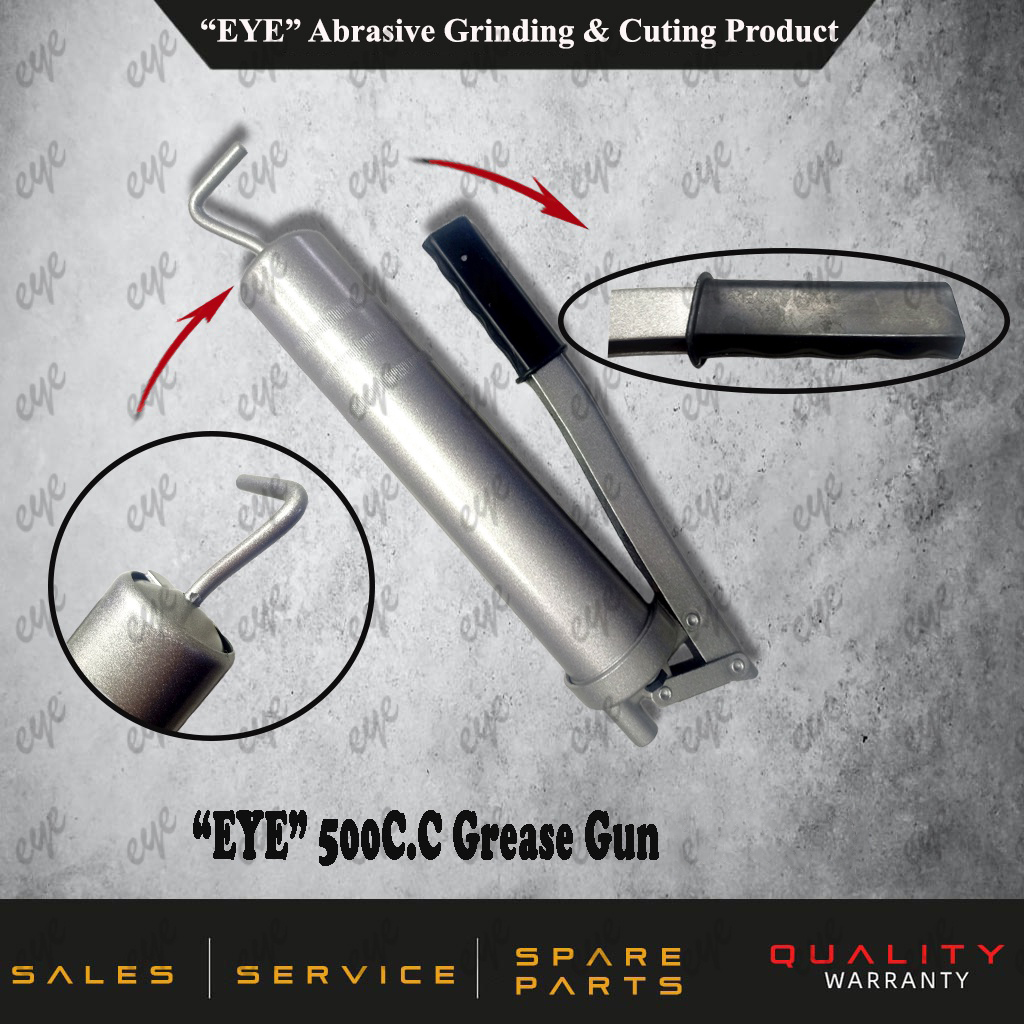

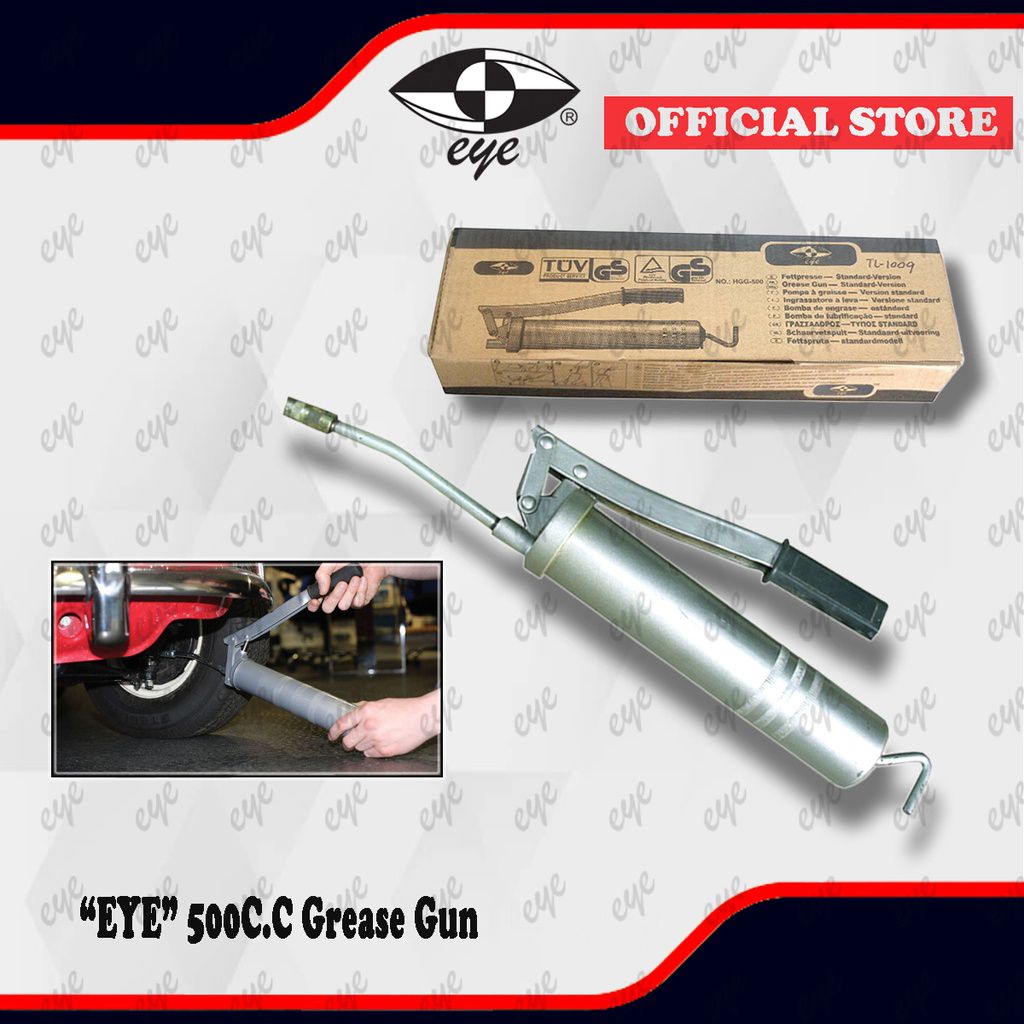

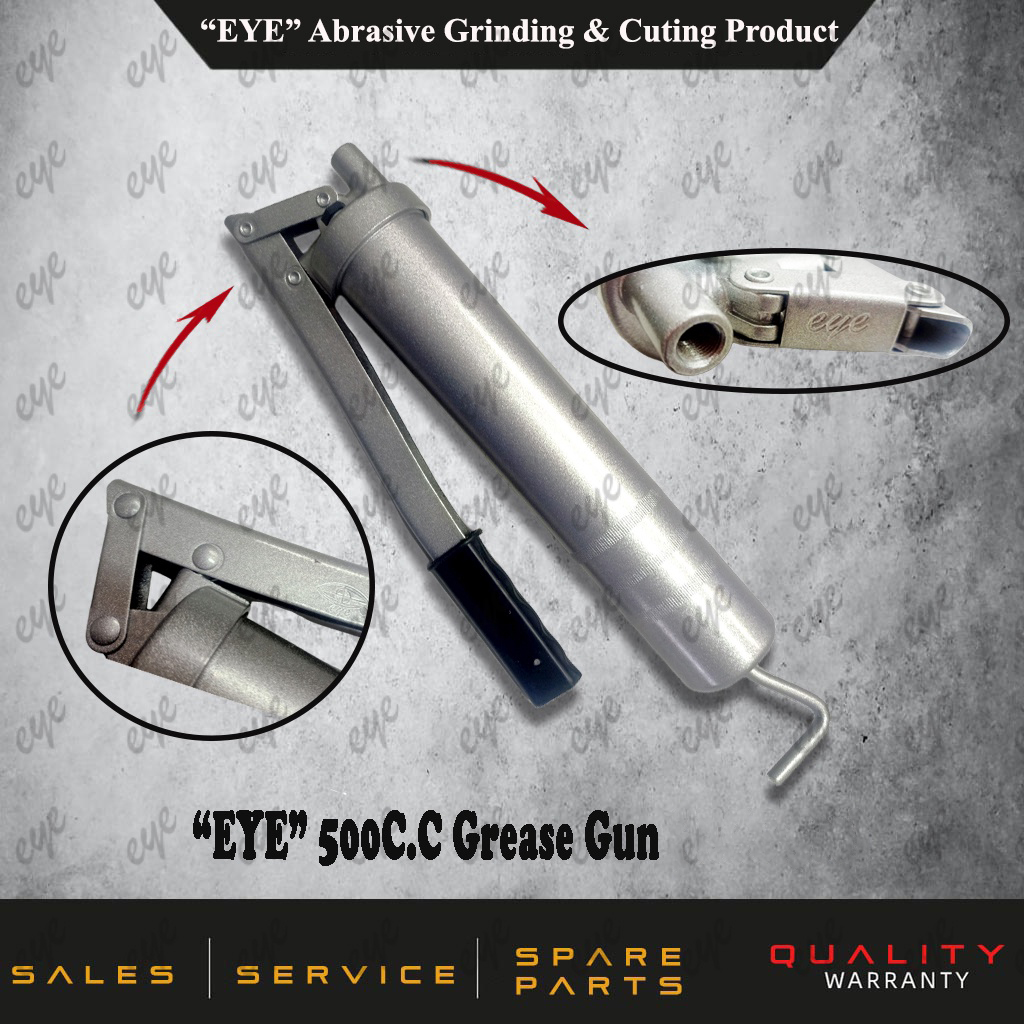

[ EYE ] 500 cc Grease Gun ( 09EGG0500 )
RM 35.50 each



  • Details

[100%] ''EYE'' OEM GREASE GUN 500cc grease pump -Easy grease filling ( 09EGG0500 )





Technical data:-





Grease gun connection, pressure-side: G 1/8''

Capacity (cm³): 500

Refilling options: 400 g grease cartridge, DIN 1284, or bulk or Glling system facility

Diameter of grease piston (mm): 8

Grease pump piston actuation: manually lever operated

Delivery rate/stroke (cm³): 1,2 at a grease density of 0.92 kg/dm³, tested with grease cartridge 400g (12 511)





Discharge pressure up to (bar): 400

Burst pressure system (bar): 850

Burst pressure grease gun head (bar): 1200





Operation of plunger rod: with L-design handle

Sealing cover: loose

Wall thickness of grease gun tube (mm): 1,0

Lacquering: silver

Weight (kg): 1.25





Special notes:-

Operates with greases up to NLGI grade 2

plunger with exactly fitting when using bulk grease or cartridge accordance to DIN 1284

TÜV - certified

Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)

Performance unchanged after 40.000 actuating cycles

Grease gun head, zinc die casting Z 410

sure grip handling due to deep band knurls

safe handle on the plunger rod

Slip resistant handle on grease gun lever

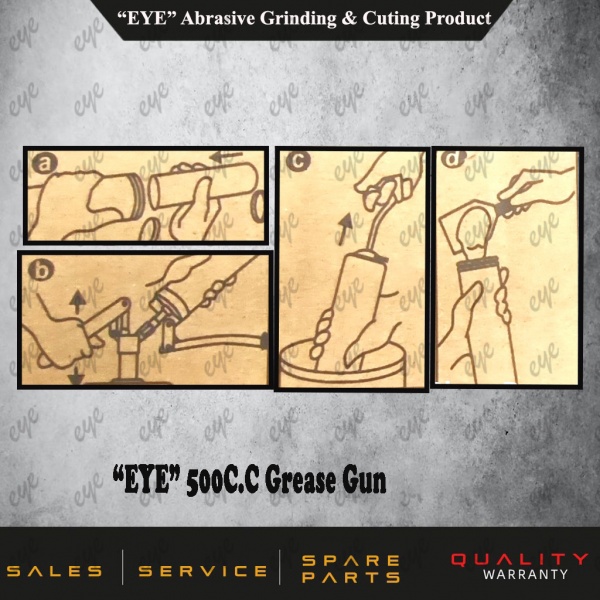

Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease, or to force in the plunger in damaged cartridges.

Low effort required for lubrication due to optimum lever efficiency
